FS-Offat is a series of program modules that interface with FS2000 for the deterministic fatigue analysis of framed structures under cyclic loading due to the action of hydrodynamic waves.

Outline Procedure

• FS-Wave - WaveLoader steps each characteristic wave through the structure. Up to 14 phase increments.
• SCF Evaluation - SCFs evaluated at up to 12 circumferential locations (stress points) on brace and chord side.
• Stress Range - Peak stress range evaluated at all stress points
• Stress Range/Wave Ht - For different wave heights log-linear interpolation is used to define a Stress Range/Wave Ht curve for each stresspoint.
• Wave Spectrum - Weibull probability function or user defined wave exceedence data define wave exceedence diagram.
• SN Curves - Standard SN curves or user defined curves are used in conjunction with Miners Rule to evaluate damage ratios. Directional Distribution factors used.

Simple Operation

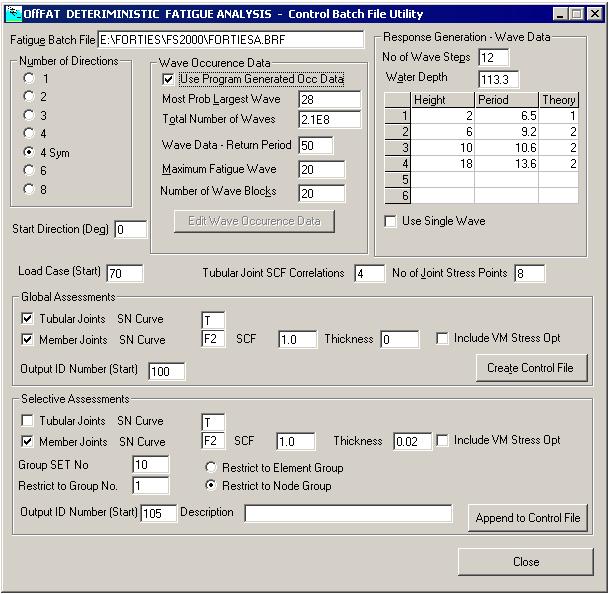

All Modules run in batch mode. A control file utility program creates all load cases and control files used in the fatigue analysis.

• Joint Recognition - Automatic recognition of Chord and Brace members
• Classification - Automatic Joint Classification (T/Y, K, X etc) based on geometry. Gap evaluation for K joints.
• Non-Tubular Joints - Stress ranges at standard nodes using defined SCF.
• SCF Evaluation Utility - Automatic SCF evaluation based on program evaluated parameters and SCF category. Evaluation utility for sensitivity studies on SCF parameters.
• UEG · Kuang, Wordsworth/Smedley
• DEn Guidance Notes
• DNV/API/EC3/ISO 1434 Ethymiou Parametric Equation
• User Defined Re-Classification

All program evaluated parameters including SCFs may be re-defined using user defined classifications and parameters.

• SN Curves - Standard or user defined curves.
• Optional Fracture Mechanics Module - BS7910-Approach using

Selective Output

• Graphical - Damage Ratio Plots Selective plots - Show only low lives
• Sorted Summary - Sort by Life Rating
• Restricted Output- Limit Output to Defined Criticality Limit (Life threshold)
